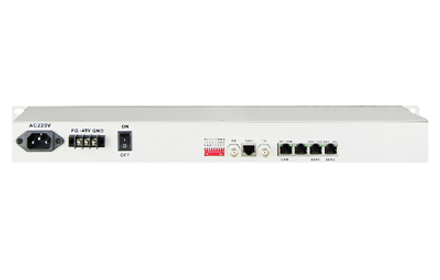

E1-8 Channel RS232/RS422/RS485 Convertet

Type:FCC-E1D8/R8/Q8 Message

Description:E1-8RS232/422/485 Converter , provides three interfaces Optional ， Used in pairs , Serial port rate up to56.7Kbps

Product Description
           This interface converter is based on FPGA, providing 8Channel RS232/485/422 transmission on E1 interface. The product breaks through contradictions between traditional serial interface communication distance and communication rate, besides, it also can solve electromagnetic interference, ground ring interference and lightning damage. The device greatly improves reliability, security and confidentiality of data communication. It is widely used for various industrial control, process control and traffic control occasions, especially for Bank, and Power and other sectors and systems which have special requirements of electromagnetic interference environment. RS232/RS485/RS422 channel can transmit adaptable serial data asynchronously 0Kbps-57600Kbps baud rate.
Functional Properties
? Based on self -copyright IC
?   Support 3 line RS232 (TXD,RXD,GND), support for flow control CD,DSR,CTS

?   Have three Loop Back Mode: E1 interface Loop Back (ANA)、RS232/485/422 interface Loop  Back(DIG)、

      Command the remote RS232/485/422 interface Loop Back(REM)

?   RS232/RS485/RS422 supports hot-plug, supports DTE or DCE device interconnection
?   RS232/RS485/RS422 channel can transmit adaptable serial data asynchronously 0Kbps-57600Kbps baud  rate
?   Have pseudo random code test function, easily line opened, can be used as a 2M BER Tester

?   Serial port interface lightning-protection reached IEC61000-4-5 (8/20μS) DM(Differential Mode): 6KV,    Impedance (2 Ohm),

     CM(Common Mode): 6KV, Impedance (2 Ohm) standard

?  Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
?  AC 220V, DC-48V, DC+24V, DC Power and Polarity-Free
Technical Parameters

u   Ethernet interface

    Interface Standard:  comply with protocol G.703;

    Interface Rate:  2048Kbps±50ppm;

    Interface Code: HDB3;

    Impedance:   75Ω (unbalance), 120Ω (balance);

    Jitter tolerance: In accord with protocol G.742 and G.823

    Allowed Attenuation: 0~6dBm

u   Serial interface

    Standard

    EIA/TIA-232 RS-232 (ITU-T V.28)

    EIA/TIA-422 RS-422 (ITU-T V.11)

    EIA/TIA-485 RS-485 (ISO/IEC8284)

    Serial Interface

    RS-422: TXD+, TXD-, RXD+, RXD-, Signal Ground

    RS-485 4 wires: TXD+, TXD-, RXD+, RXD-, Signal Ground

    RS-485 2 wires: Data+(Correspond TX+), Data-（Correspond TX-）, Signal Ground

    RS-232: RXD, TXD, Signal Ground

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤3W

u   Dimension

    Product size:        216X140X31mm(WXDXH)
    Simple packaging:  274X193X84mm(WXDXH)
    Piece weight : 1.25KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity: 5%~95 % (no condensation)
    Storage temperature: -40°C ~ 80°C
    Storage Humidity: 5%~95 % (no condensation)

Application Scheme

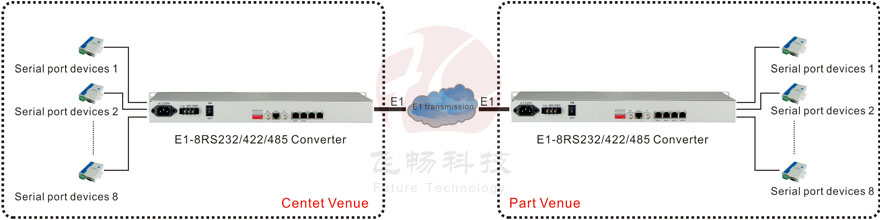

Applications 1

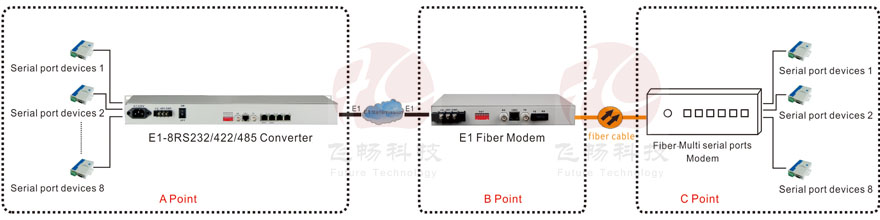

Applications 2
