Industrial 1-2 channel CAN-bus fiber modem

Type:FCP-C1/2G Message

Description:An optical port,1-2 CAN BUS Interface;Simultaneous transmission of 1-2 CAN bus interfaces on the fiber.

Product Description
        The CAN optical fiber cat can convert the CAN bus signal into an optical signal and transmit it on the optical fiber, which has the effect of extending the communication distance of the CAN bus. At the same time, the use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage. It greatly improves the reliability, security and confidentiality of data communication, and can be widely used in various industrial control, process control, and traffic control occasions. It is especially suitable for banks, electric power, and departments and systems that have special requirements for electromagnetic interference environments.
Functional Properties
◆ Integrated circuits based on independent intellectual property rights;

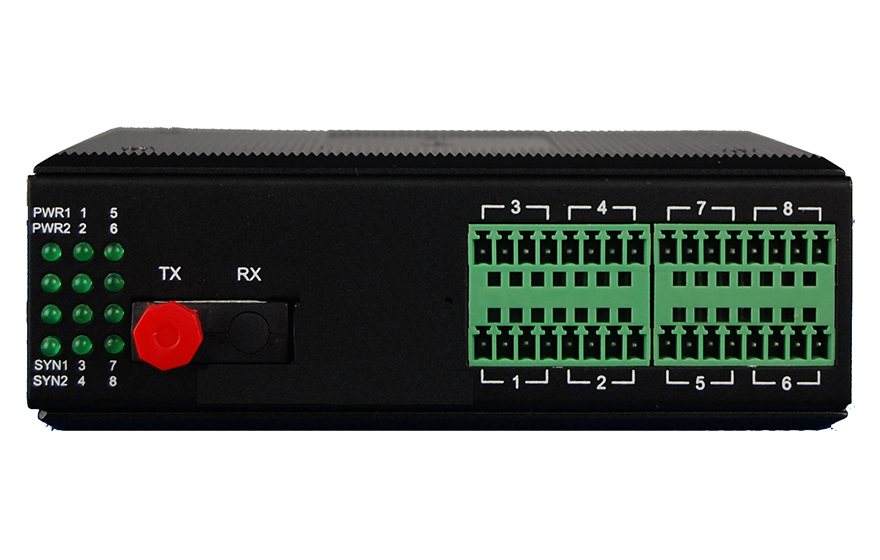

◆ Provide 1-2 CAN bus interfaces and 1 optical port;
◆ CAN data is fully transparent, baud rate is self-adaptive, no setting is required;
◆ CAN interface maximum number of nodes 128; CAN interface maximum rate 0-1Mbps;
◆ The CAN interface speed complies with the international CAN1.0 and CAN2.0 standards;
◆ Support wide range AC / DC input, support internal isolation, redundant dual power input, power supply support overload protection, anti-reverse protection;
◆ Meet the requirements of industrial level IV electromagnetic compatibility;
◆ Super lightning protection function: anti-lightning, anti-induction high voltage, anti-surge, etc .;
◆ Fanless heat dissipation, reducing repair time;
◆ IP40 enclosure protection level, can withstand the test of harsh environment;

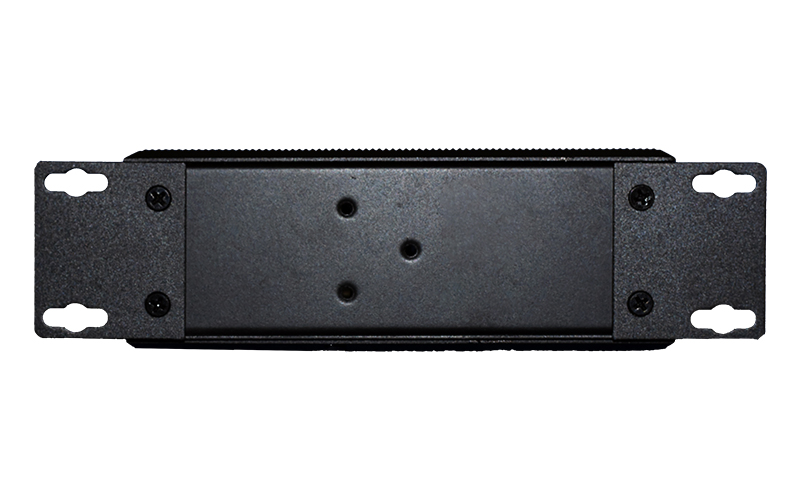

◆ Rail or wall mounting;
◆ Wide temperature type: working temperature -40 ℃ ~ + 85 ℃;
◆ All models pass 100% baking machine test, warranty period: 5 years;
◆ CAN interface with lightning protection, anti-radar to GB / T17626.5 (IEC61000-4-5) short-circuit current wave 10 / 700μs, open-circuit peak output voltage 6KV standard.
Technical Parameters
◆ Fiber
Optical port: 1
Optical fiber: single fiber double fiber
Optical fiber interface: FC / SC / ST optional
Wavelength: 850nm / 1310nm multimode; 1310nm / 1550nm single mode
Transmission distance without relay: 20 ~ 120Km
Typical transmit power:  1310 / 1550nm single mode: ≥-9dBm
Multimode 850nm: -18dBm
Multimode 1310nm: -25dBm
Acceptance sensitivity range: -28dBm ~-40dBmm
◆ CAN Bus interface
Protocol: Comply with international CAN1.0, CAN2.0 standards
Rate: 0 ～ 1000Kbps
Physical Interface: Industrial Terminal
CAN definition: CANH, CANL, GND
◆ Electrical and mechanical characteristics

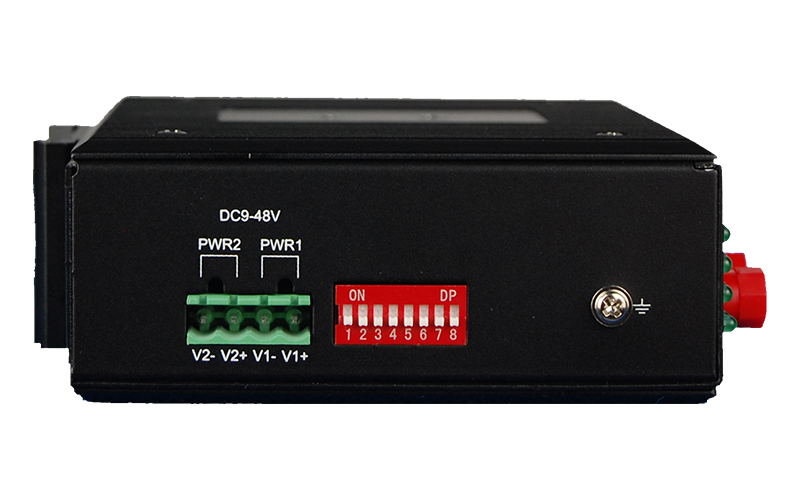

System power: AC7V ～ 50V; DC9-55V;
Power consumption: ≤2W
Appearance structure: 133mm (length) x 120mm (width) x 50.0mm (height)
◆ Working environment
Working temperature: -40 ℃ — + 85 ℃
Storage temperature: -40 ℃ — + 85 ℃
Operating humidity: 0% —95% (non-condensing)
MTBF: ＞ 100,000 hours

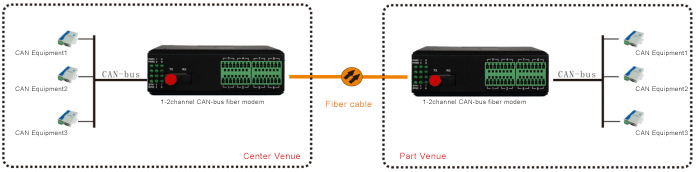

Application Scheme
Industrial 1-2 channel CAN-bus fiber modem
?
